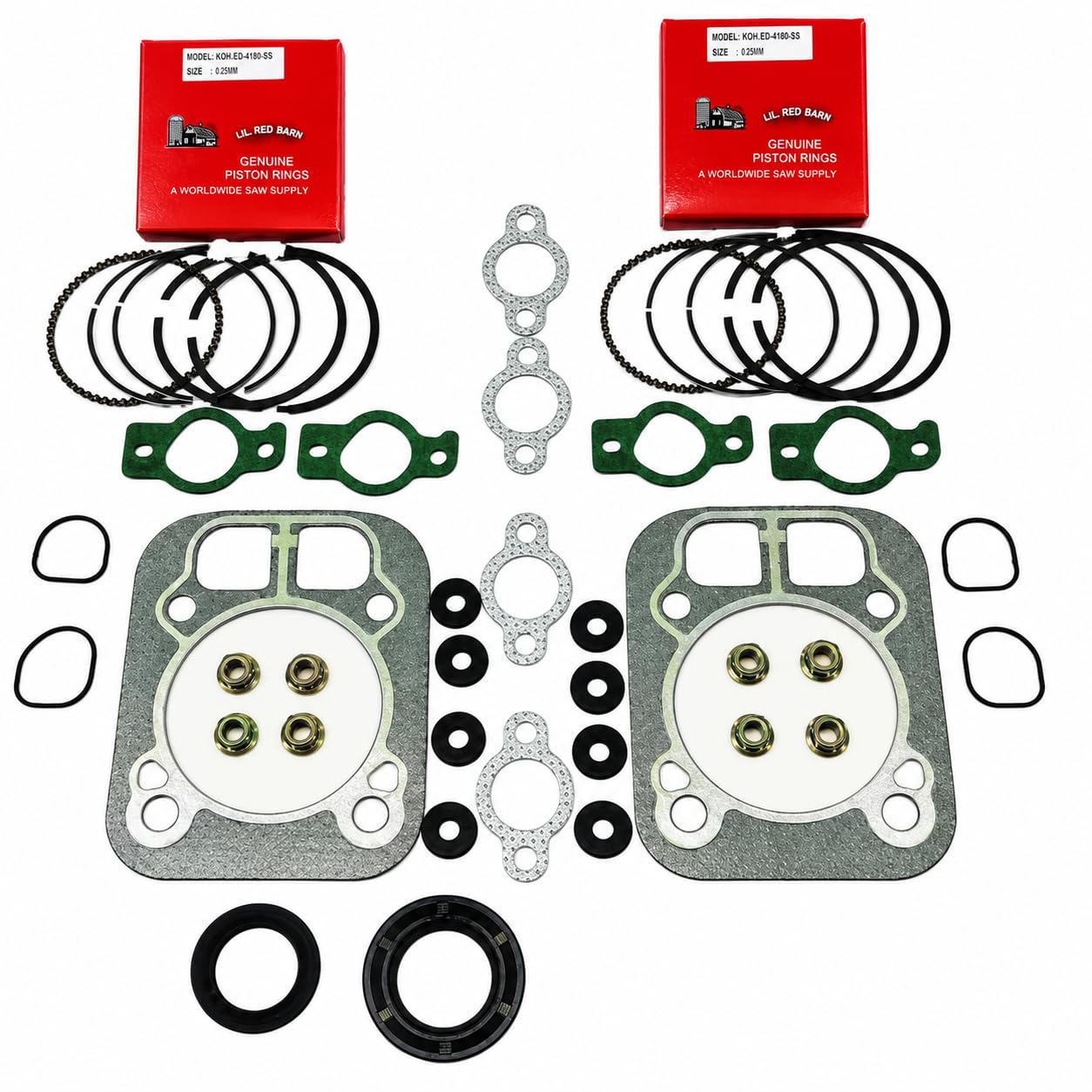

Lil Red Barn 83mm +.008 Oversize Ring & Gasket Kit for Kohler Command Pro, 7000 Series, and Courage Engines (Style A Pistons) An oversized ring and gasket kit for Kohler 83mm bore twin-cylinder engines with Style A (1.5mm) pistons. The +.008 oversized rings are designed to restore compression on engines with slight cylinder wear or worn ring grooves where a tighter ring fit is needed. WHAT'S INCLUDED 2 piston ring sets (1.5mm top compression ring, +.008 oversized, second compression ring, and 3-piece oil control rings) Cylinder head gaskets Valve cover gaskets Crankcase breather gasket 2 crankshaft oil seals Sump/oil pan sealant This is a RING kit for engines where existing Style A pistons are still serviceable. Pistons, connecting rods, and valves are NOT included. WHEN TO CHOOSE +.008 OVERSIZED RINGS +.008 oversized rings are the right choice when: Cylinder bore measures at or slightly beyond factory wear limits but remains within serviceable tolerance Existing ring grooves show wear and standard-size rings won't restore proper compression You want to extend engine life through a light re-ring rather than a complete rebuild If your engine has significant piston or cylinder damage, a complete rebuild kit with new pistons is the better choice. STYLE A vs STYLE B - VERIFY BEFORE ORDERING Kohler produced these engines with two different piston ring thicknesses: 1.5mm rings (Style A) - this kit 1.2mm rings (Style B) - different kit required Measure your existing top ring thickness on your current piston. If your rings measure 1.5mm, this kit is correct. If they measure 1.2mm, order the 1.2mm Style B ring kit instead. Note: This verification only matters for RING-ONLY kits like this one. Complete rebuild kits that include new pistons don't require ring style verification because the pistons and rings are replaced together as a matched set. COMPATIBLE KOHLER ENGINES (83mm BORE, STYLE A PISTONS) All the engines below share the same 83mm bore. Kohler marketed them under different names over the years, but the top-end parts are compatible when Style A pistons are installed: Command Pro Twin (horizontal shaft): CH25, CH26, CH27, CH730, CH735, CH740, CH745, CH750 Command Pro Twin (vertical shaft): CV25, CV26, CV27, CV724, CV725, CV730, CV740, CV745, CV750 7000 Series (KT): KT715, KT725, KT730, KT735, KT740, KT745 Courage and Courage Pro: SV710, SV715, SV720, SV725, SV730, SV735, SV740, SV810, SV820, SV830, SV840, LH755, LH775, ECV749 All are 83mm bore, 725cc or 747cc displacement, 4-cycle OHV twin-cylinder engines. CROSS-REFERENCES KOHLER part numbers Ring set: 24-108-15-S, 2410815-S, 25-108-15-S INSTALLATION NOTES When installing oversized rings, verify piston ring groove condition and cylinder bore measurements before assembly. Use a piston ring compressor for installation. Follow Kohler service manual torque specifications when reassembling the engine.

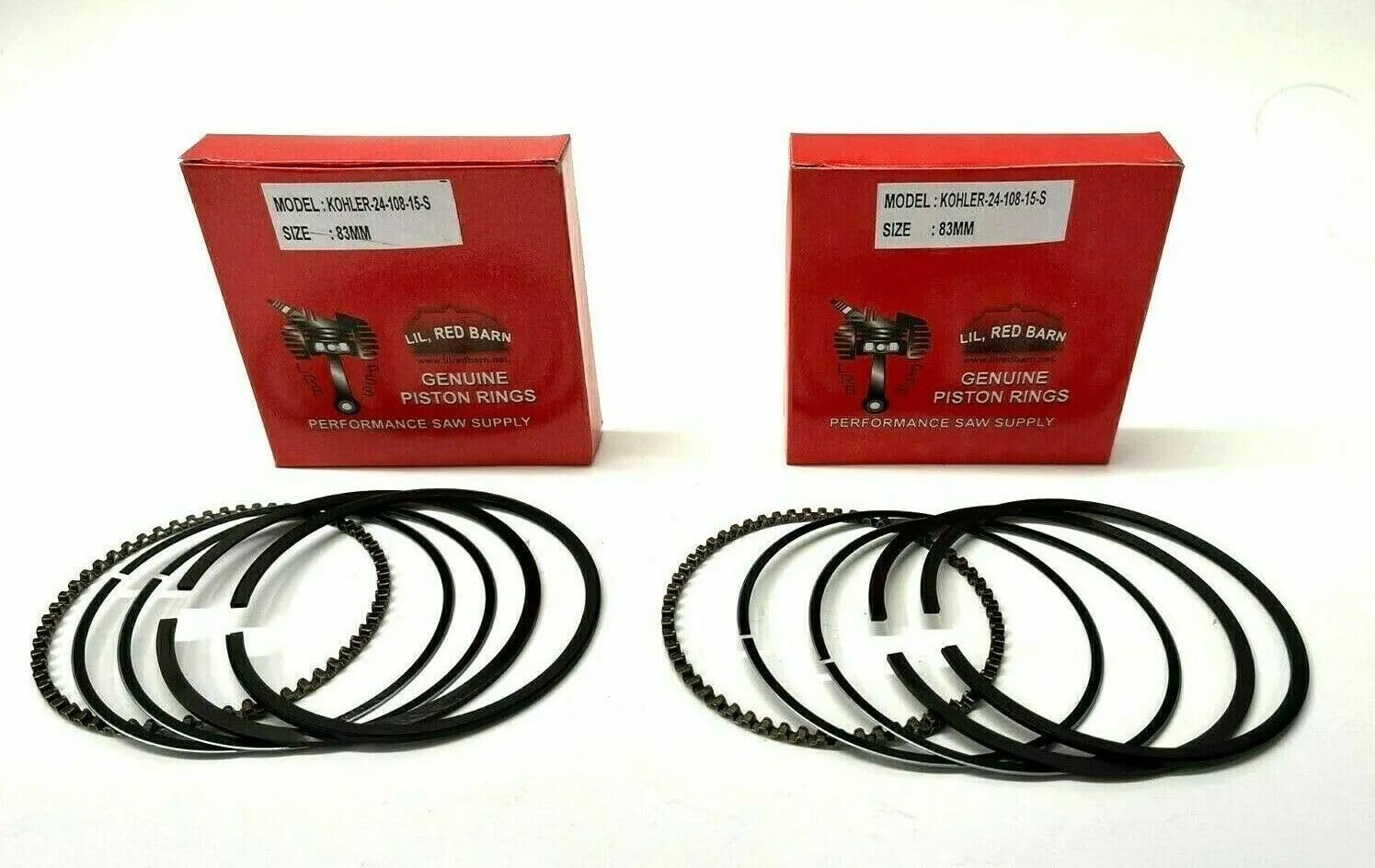

- 83mm +.008 OVERSIZED RING KIT FOR STYLE A KOHLER ENGINES - Includes 2 piston ring sets (1.5mm top compression ring, +.008 oversized) plus complete gasket set with head gaskets, valve cover gaskets, crankcase breather gasket, and 2 crankshaft seals. Sump/oil pan sealant included. This is a RING kit - pistons are NOT included. For buyers re-ringing existing Style A pistons.
- WHEN TO USE +.008 OVERSIZED RINGS - Choose oversized rings over standard size when: (1) your cylinder bore shows slight wear but is still within serviceable tolerance, (2) your existing ring grooves show wear and you need a tighter fit to restore compression, or (3) you're doing a light re-ring to extend engine life without a complete rebuild. If your engine has significant wear, consider a complete rebuild kit with new pistons instead.

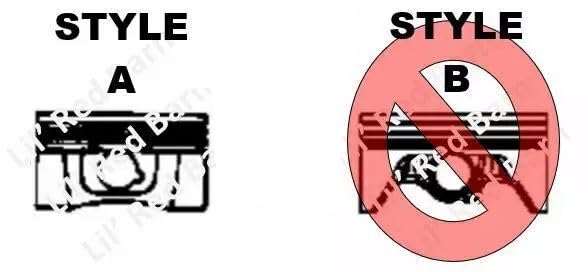

- CRITICAL: STYLE A (1.5mm) PISTONS ONLY - Kohler used two ring groove designs on these engines: 1.5mm (Style A, this kit) and 1.2mm (Style B). This kit fits Style A pistons only. Measure your existing top ring thickness before ordering. If your engine uses 1.2mm rings, this kit will NOT fit - Lil Red Barn offers a separate 1.2mm Style B ring kit for those engines.
- CROSS-REFERENCES THE KOHLER PART NUMBERS - Replaces Kohler ring set part numbers 24-108-15-S, 2410815-S, and 25-108-15-S. If your Kohler service manual, dealer, or parts diagram references any of these numbers, this kit contains the components you need. Compatible with Command Pro (CH25, CH26, CH27, CH730, CH735, CH740, CH745, CH750, CV25-CV750), 7000 Series (KT715-KT745), and Courage (SV710-SV840, LH755, LH775, ECV749) engines using 83mm bore Style A pistons.
- WHILE THE ENGINE IS APART - Hone both cylinders so the new rings have a crosshatch to bed into, check the crank journals and rod clearance, and fit new valve stem seals and a breather gasket while you have access to them. Rings cure oil consumption on a bore that is still round and within taper; on a scored or hard glazed cylinder they will not seal. Pistons, wrist pins and clips are not included.
