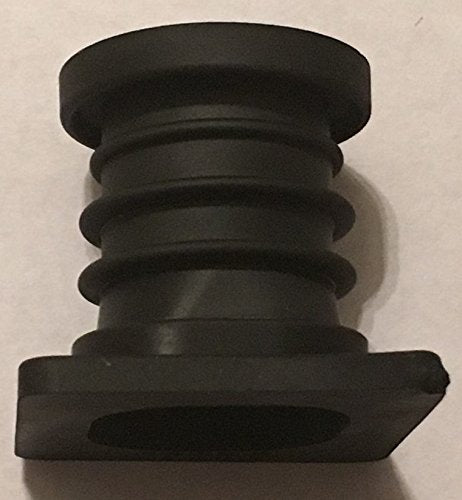

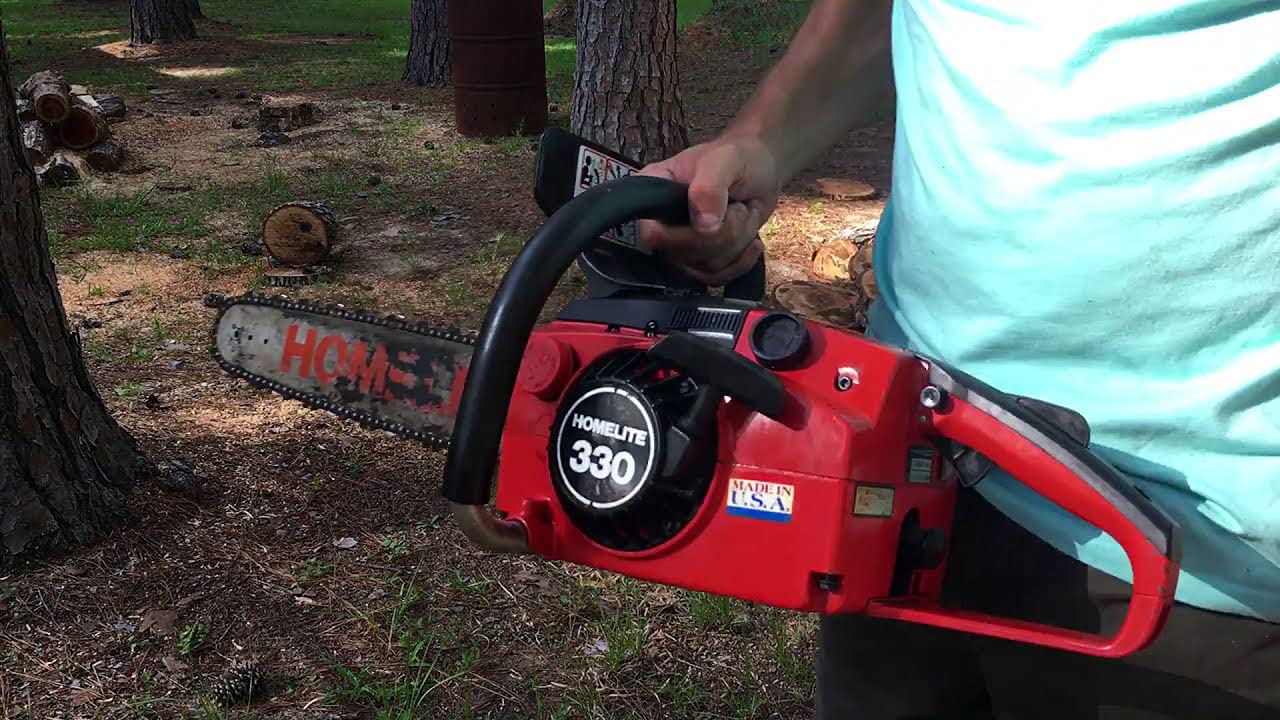

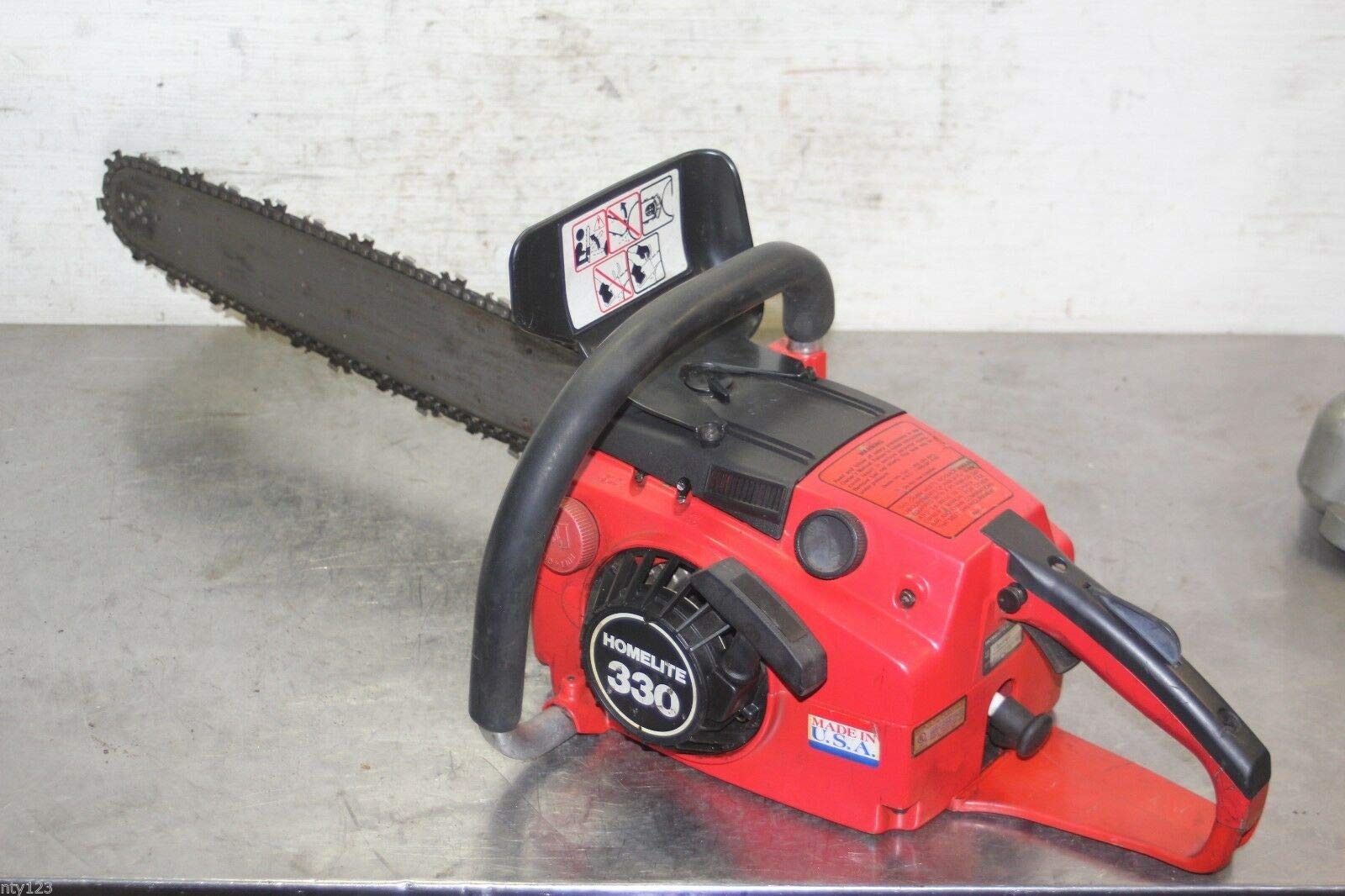

This is a Brand NEW High Quality Reproduction made by Lil Red Barn. Compatible with Homelite Carburetor Intake Boot Connector. Compatible with Homelite 330 chain saws. Part # 93838B Part # UP05710.
- Quality reproduction boot is a great low cost alternative for overhauling your chainsaw. We use our reproduction parts in our own shop.
- YEAR INTRODUCED: 1981 YEAR DISCONTINUED: ENGINE DISPLACEMENT: 3.27 cu. in. (53.6 ccm) NUMBER OF CYLINDERS: Two-Cycle single cylinder loop scavenged engine CYLINDER BORE: 1.687 in. (43 mm) PISTON STROKE: 1.464 in. (37 mm) PISTON RING THICKNESS: 2 rings, pn 93823 CYLINDER TYPE: Aluminum with Chrome plated bore INTAKE METHOD: Reed valves MANUFACTURER ADVERTISED H.P.: 3.29 SAE @ 8,000 RPM WEIGHT: 12 lbs. 8 oz. (5.7 kg) powerhead only
- CHAIN BRAKE: Optional, mechanical CLUTCH: Centrifugal, 3 metal shoes DRIVE TYPE: Direct CONSTRUCTION: Injection molded Polymer MAGNETO TYPE: Flywheel Electronic
- IGNITION TIMING: fixed BREAKER POINT SETTING: none FLYWHEEL/COIL AIR GAP: 0.015 in. (0.38 mm) SPARK PLUG TYPE: Champion DJ7Y SPARK PLUG GAP: 0.025 in. (0.63 mm) CRANKSHAFT MAIN BEARINGS: Caged needle roller FUEL TANK CAPACITY: 16 oz. (473 ml)
- FUEL OIL RATIO: 32:1 with Homelite oil RECOMMENDED FUEL OCTANE: Regular MIX OIL SPECIFICATION: chain saw mix oil CHAIN PITCH: 3/8 in. CHAIN TYPE: BAR MOUNT PATTERN: 14 link SHORTEST GUIDE BAR SUPPLIED: 16 in. (40 cm) LONGEST GUIDE BAR SUPPLIED: 24 in. (61 cm)
