Rebuild Kit Briggs Intek 19-21 HP OHV 794126 Rings

Regular price: $74.95
Sale price: $74.95
Regular price
Unit price: per

Ring and gasket kit for the Briggs & Stratton 33-series single-cylinder OHV engines, 19 to 21 HP, at the 94mm (3.70 inch) bore. The kit contains piston ring set 794126 and complete engine gasket set 796187, with the head gasket, valve cover gasket, intake and exhaust gaskets and small O-rings. Pistons, connecting rods, valves, wrist pins and circlips are not included: this is for an engine whose pistons are still serviceable. It fits models 331707, 331777, 331807, 331877, 33M677, 33M777, 33M977, 33R777, 33R877, 33S777 and 33S877 and short blocks 592057 and 592058. It does not fit the 31-series 16 to 18 HP singles, which have a 90.5mm bore and take ring set 594437, or the V-twins and the 22 HP and larger singles. Read the model, type and code on the engine before ordering. Measure the bore for size and taper and check the ring grooves first, hone lightly, stagger the ring gaps, check the head for warp and follow the service manual for head bolt torque.

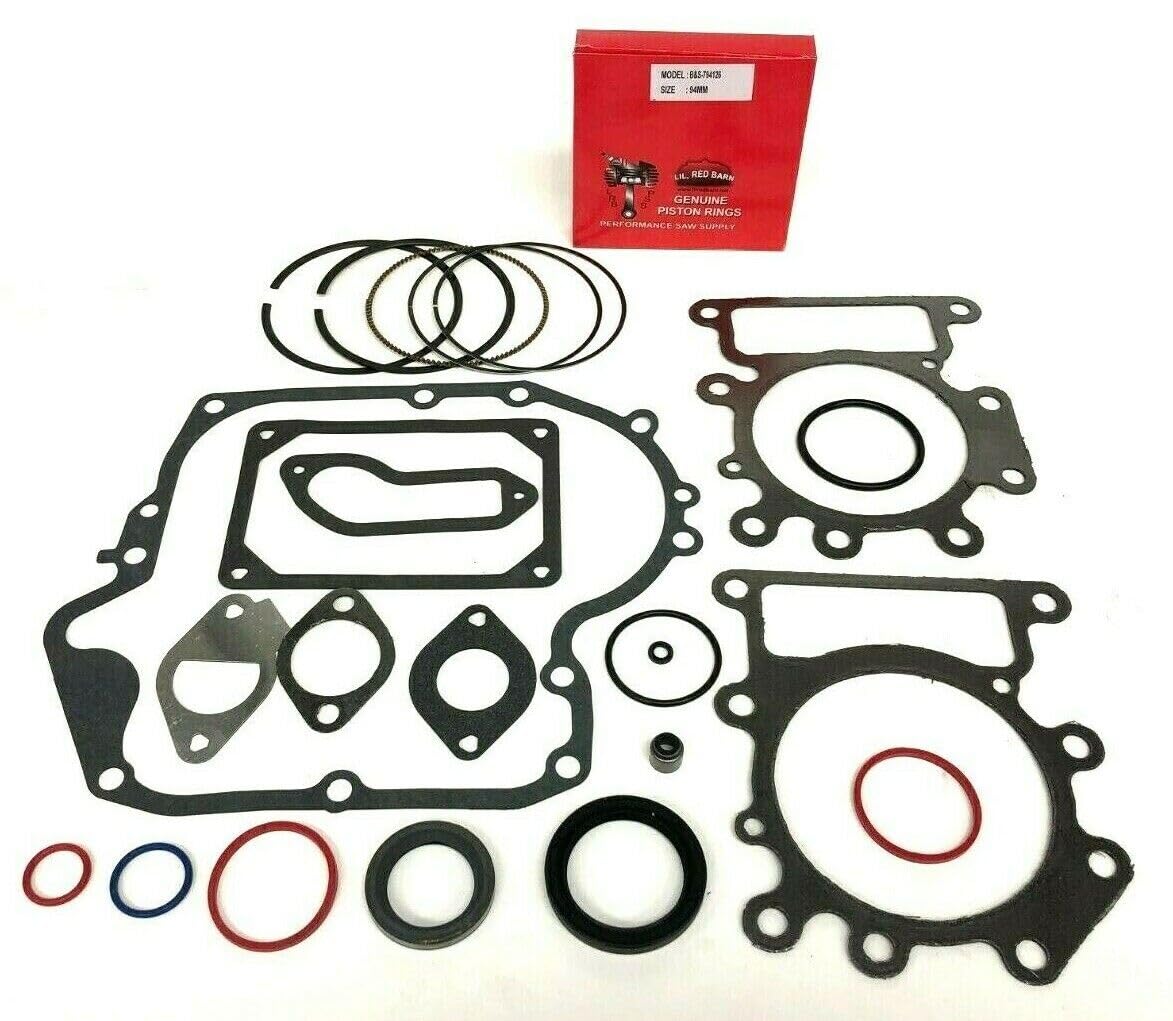

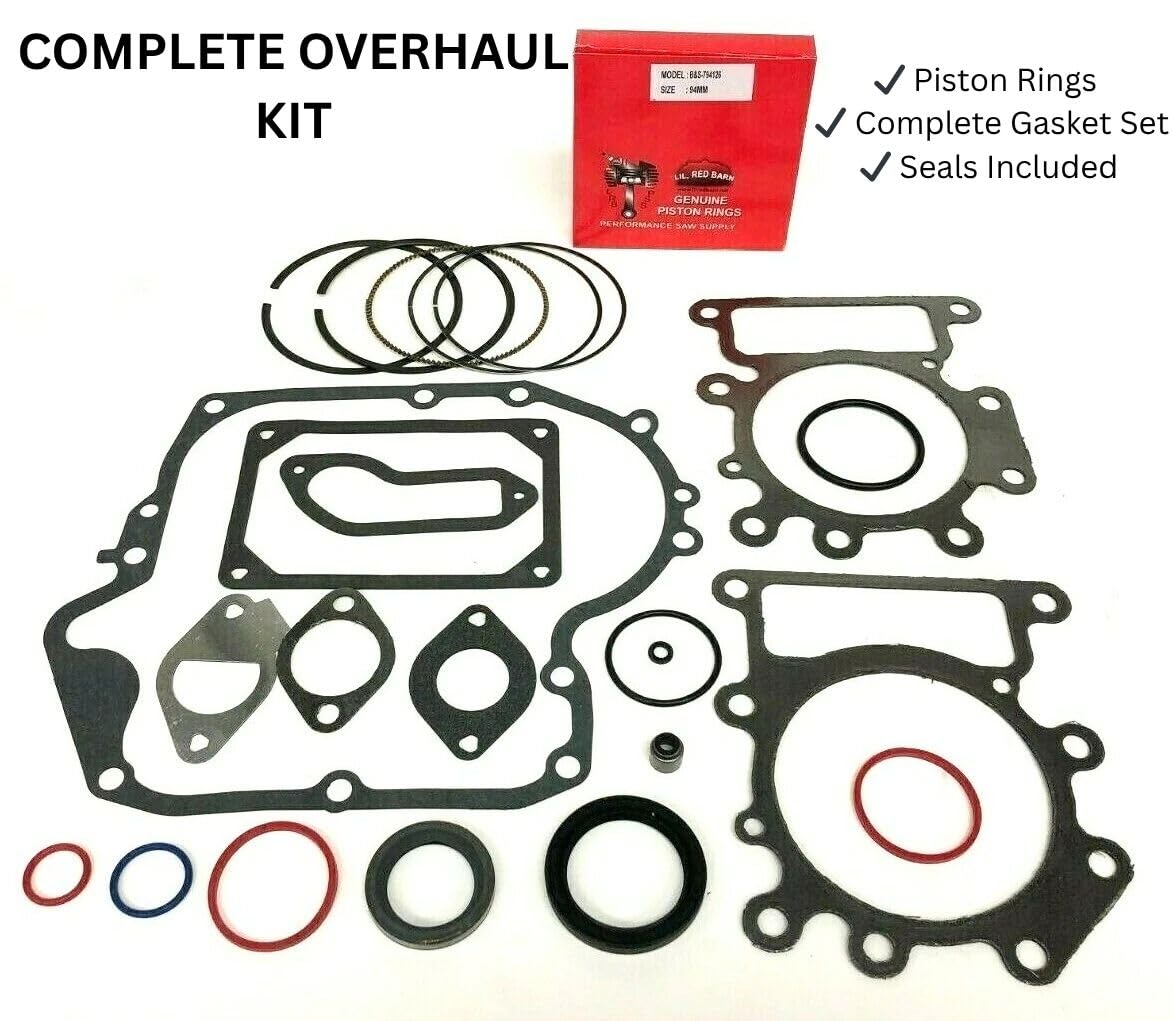

RING SET AND THE FULL GASKET SET - Piston ring set 794126 and engine gasket set 796187, with the head gasket, valve cover gasket, intake and exhaust gaskets and small O-rings. Pistons, connecting rods, valves, wrist pins and circlips are not included.

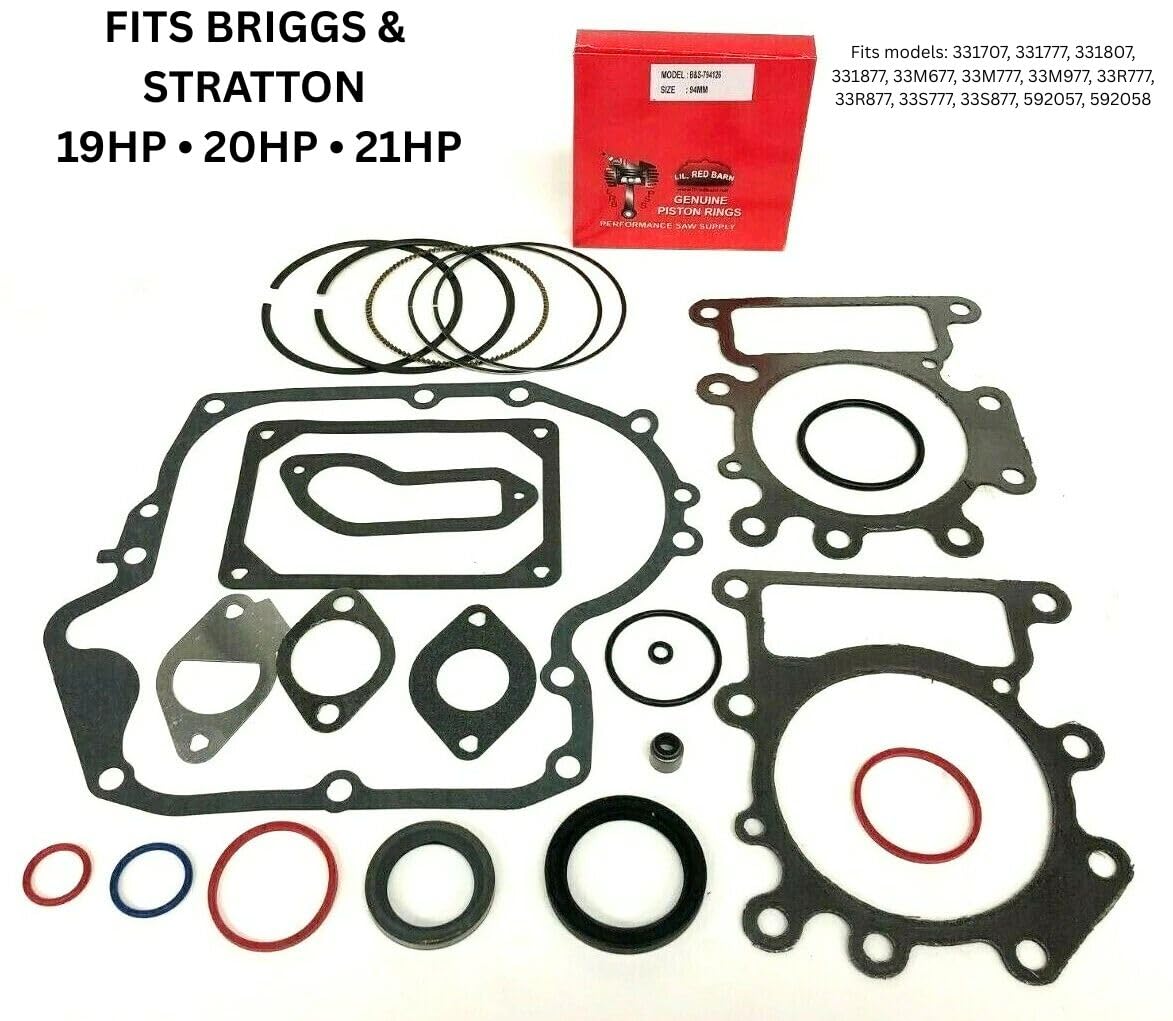

FITS BRIGGS & STRATTON 33-SERIES SINGLES - The 19, 20 and 21 HP single-cylinder OHV engines at the 94mm (3.70 inch) bore: models 331707, 331777, 331807, 331877, 33M677, 33M777, 33M977, 33R777, 33R877, 33S777 and 33S877, and short blocks 592057 and 592058.
NOT FOR THE 16 TO 18 HP OR THE V-TWINS - The 31-series 16 to 18 HP singles have a 90.5mm bore and take ring set 594437. V-twins and singles of 22 HP and up take different parts. Read the model, type and code on the engine before ordering.
REPLACES 794126 AND 796187 - If your parts list shows these numbers for the ring set and gasket set, this kit covers them. The same gasket set is used on the 31-series engines.
FOR PISTONS THAT ARE STILL GOOD - Measure the bore for size and taper and check the ring grooves before ordering. Hone lightly, stagger the ring end gaps, check the head for warp and tighten the head bolts in the sequence in the service manual.
