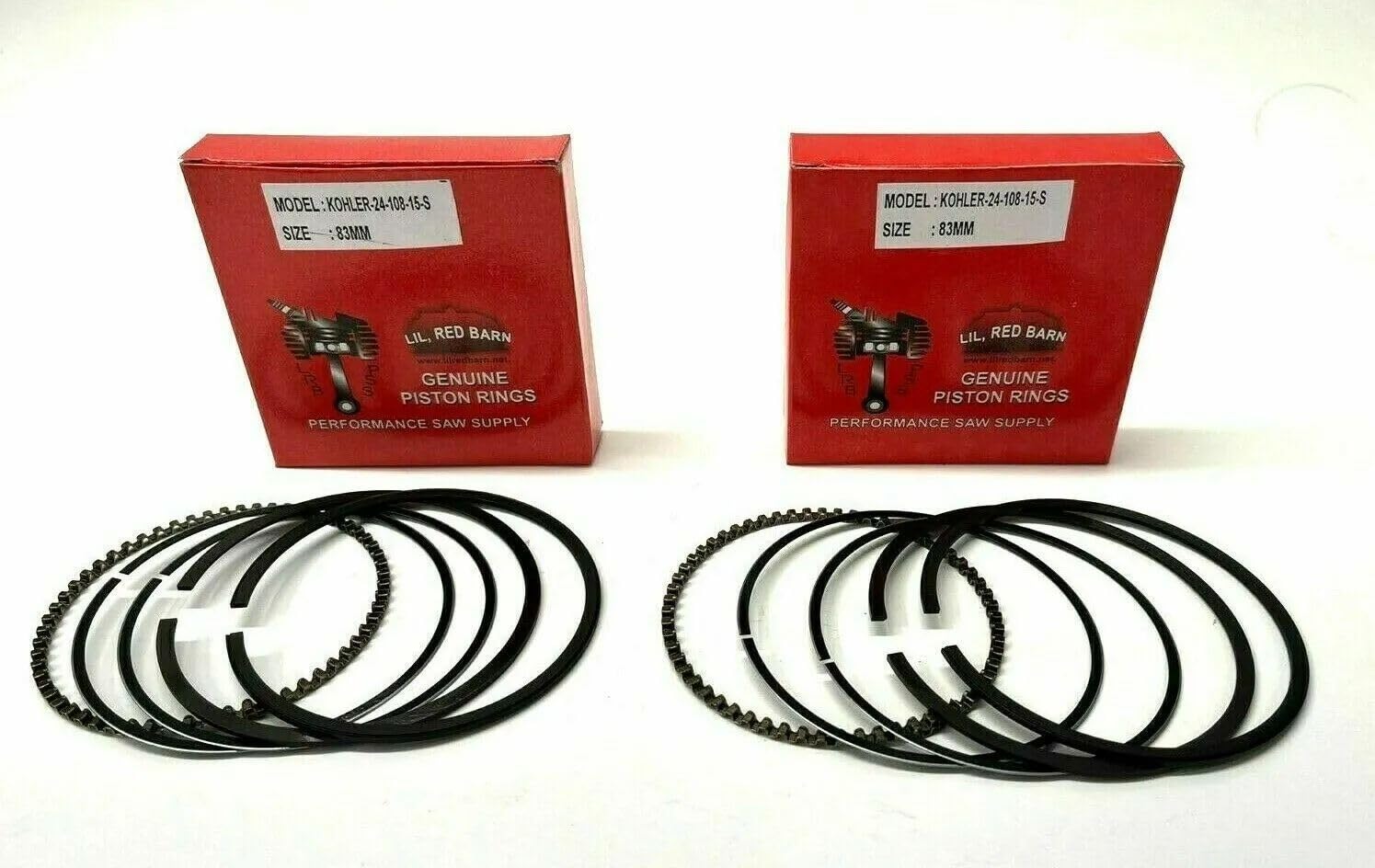

This rebuild kit is designed for Kohler Command and Command Pro twin-cylinder engines using .008 Oversize 83mm bore pistons with 1.2mm top ring thickness (Style B pistons). The kit includes two piston ring sets along with gaskets and seals for engine rebuild or compression restoration. Compatible with Kohler engines including: CH25 CH26 CH730 CH735 CH740 CH745 CH750 CV25 CV26 CV724 CV725 CV730 CV740 CV745 CV750 LH755 LH775 SV710 SV715 SV720 SV725 SV730 SV735 SV740 SV810 SV820 SV830 SV840 ECV749 These rings replace Kohler part numbers: 24-108-01-S 24-108-11-S 24-108-22-S 25-108-01-S Important: Kohler engines in this series used two different piston ring thickness designs. This kit fits engines using 1.2mm top compression rings only. Always measure your existing rings or verify piston style before ordering.

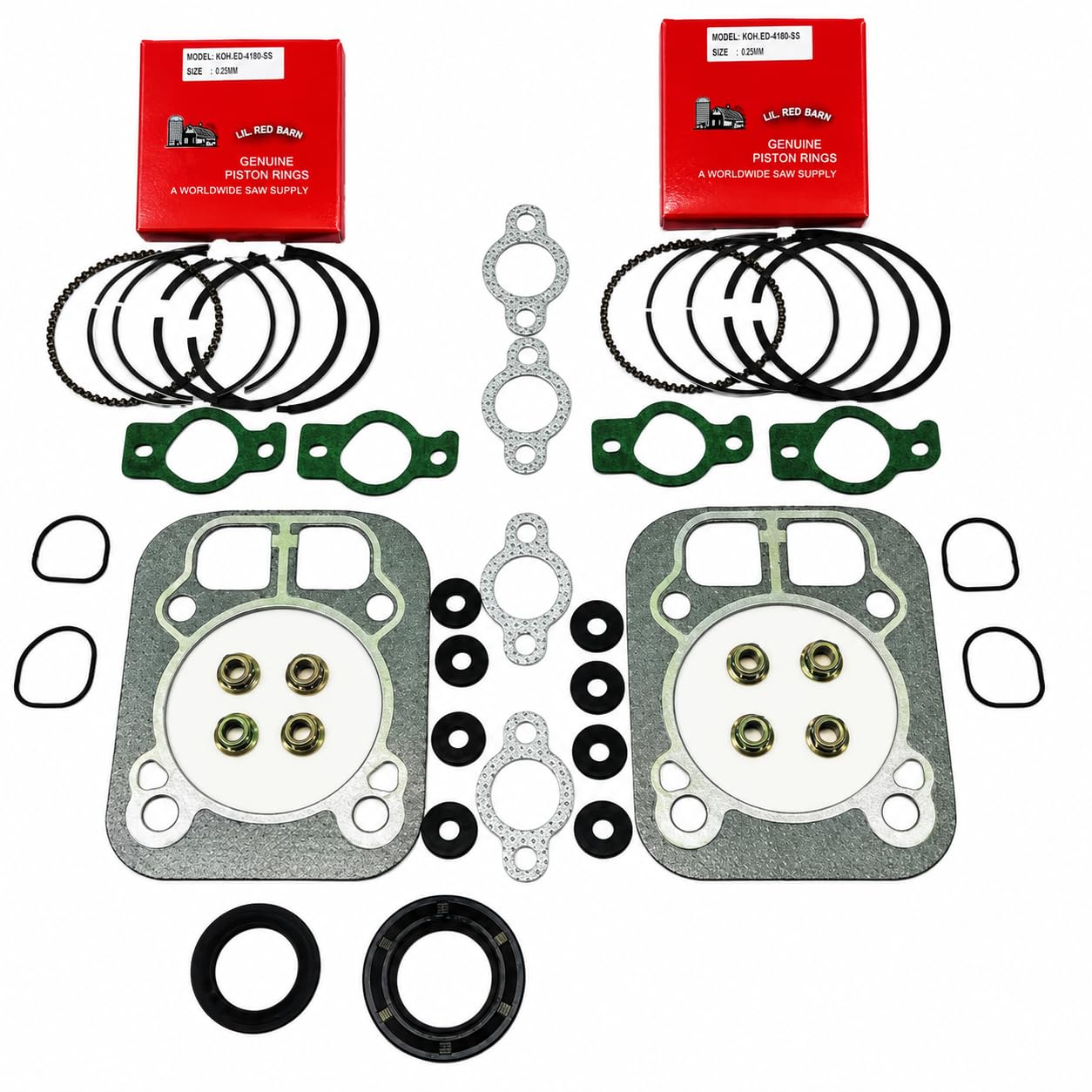

- 83mm .008 Oversize Bore Rebuild Kit Includes gasket set, seals, and two piston ring sets designed for Kohler twin-cylinder engines with standard 83mm bore.
- 1.2mm Top Ring Thickness – Style B Pistons Designed for pistons that use a 1.2mm top compression ring. Verify ring thickness before ordering to ensure compatibility.
- Replaces Kohler Ring Part Numbers Compatible with Kohler ring sets 24-108-01-S, 24-108-11-S, 24-108-22-S, 25-108-01-S.
- Fits Kohler Command & Command Pro Engines Compatible with CH25, CH26, CH730, CH735, CH740, CH745, CH750, CV25, CV26, CV724, CV725, CV730, CV740, CV745, CV750, LH755, LH775, SV710–SV840, and ECV749 engines using 83mm bore pistons.
- Verify Ring Thickness Before Ordering Kohler used two different ring thickness styles on these engines. If your piston uses 1.5mm rings, this kit will NOT fit.
